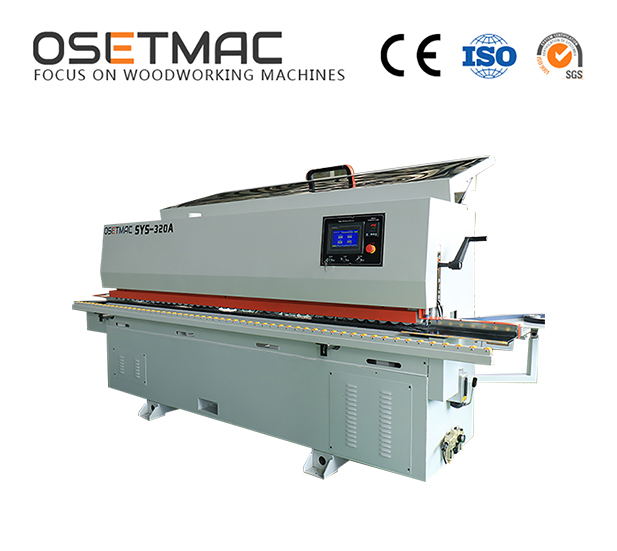

SYS-320A

Model

SYS-320A

Panel Thickness

10-60mm

Edge Band Thickness

0.3-3mm

Panel Width

≥60mm

Panel Length

≥150mm

Feeding Speed

15m/min

Working Pressure

0.6Mpa

Voltage

380V/50HZ/3PH

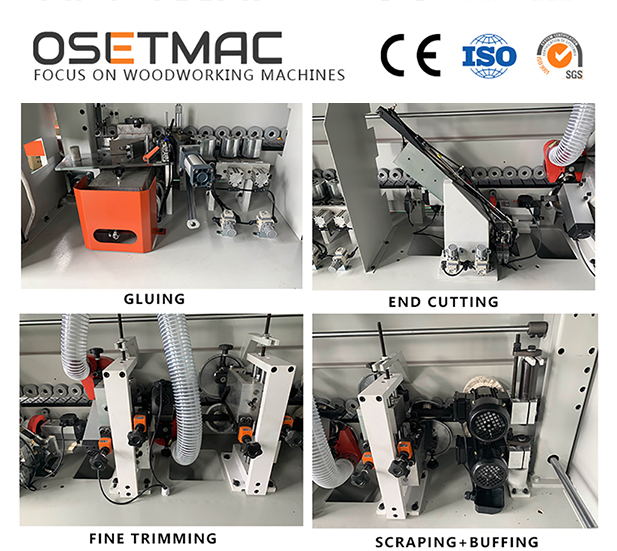

Gluing Motor

0.37KW       50HZ    1400RPM

End Cutting Motor

0.37KW * 2    200HZ  12000RPM

Fine Trimming Motor

0.75KW * 2    200HZ  12000RPM

Buffing Motor

0.37KW * 2    50HZ    1400RPM

Conveyor Motor

1.5KW

Glue Pot Heating Power

1.5KW

Assistant Heating Power

0.3KW

Lighting Power

0.05KW

Total Power

6.7KW

Dimension

3650*770*1450mm
