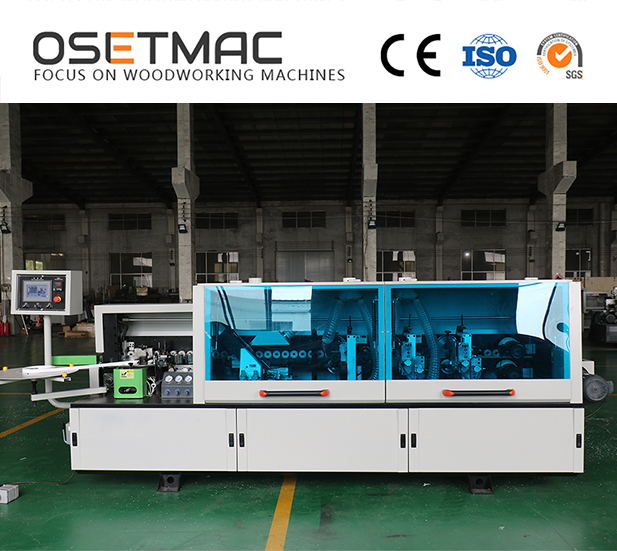

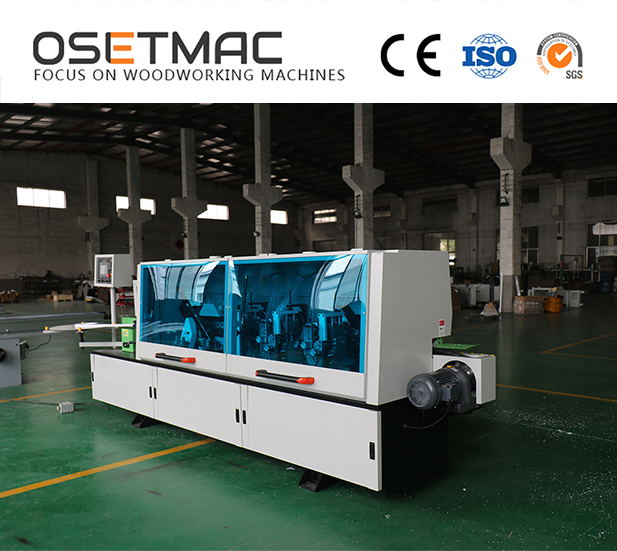

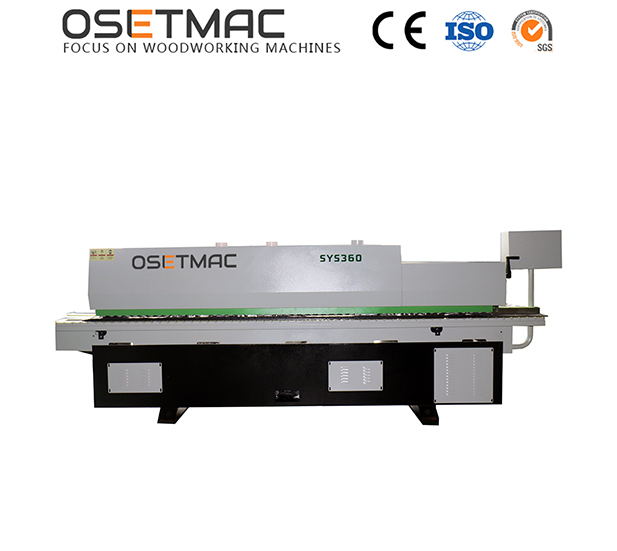

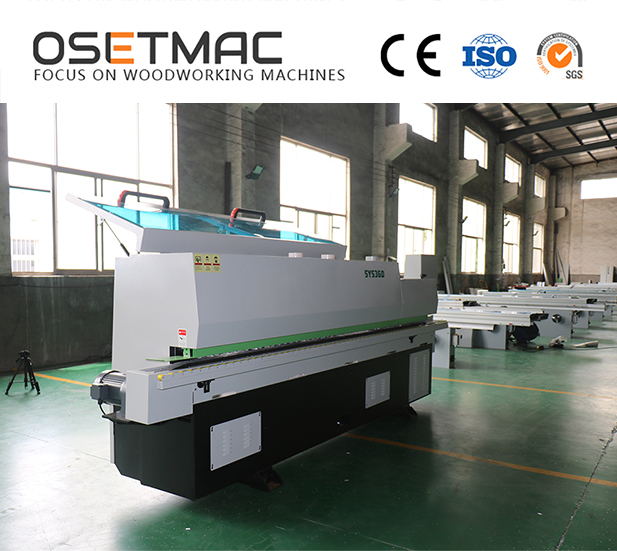

SYS-360

Model

SYS-360

Panel Thickness

10-60mm

Edge Band Thickness

0.3-3mm

Panel Width

≥60mm

Panel Length

≥150mm

Feeding Speed

15m/min

Working Pressure

0.6Mpa

Voltage

380V/50HZ/3PH

Gluing Motor

0.37KW/50HZ/1400RPM

End Cutting Motor

0.37KW * 2/200HZ/12000RPM

Rough Trimming Motor

0.55KW * 2/200HZ/12000RPM

Fine Trimming Motor

0.55KW * 2/200HZ/12000RPM

Buffing Motor

0.37KW * 2/50HZ/1400RPM

Conveyor Motor

1.5KW

Glue Pot Heating Power

1.5KW

Assistant Heating Power

0.3KW

Lighting Power

0.05KW

Total Power

7.4KW

Dimension

4100x800x1560mm

Wooden Case Package

4200x870x1700mm
