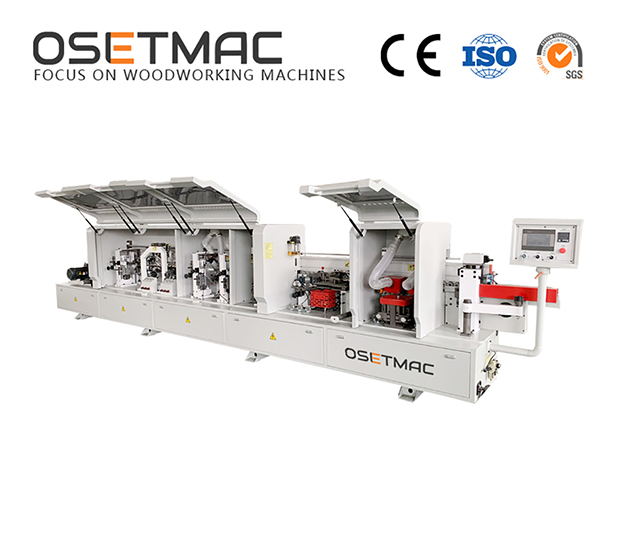

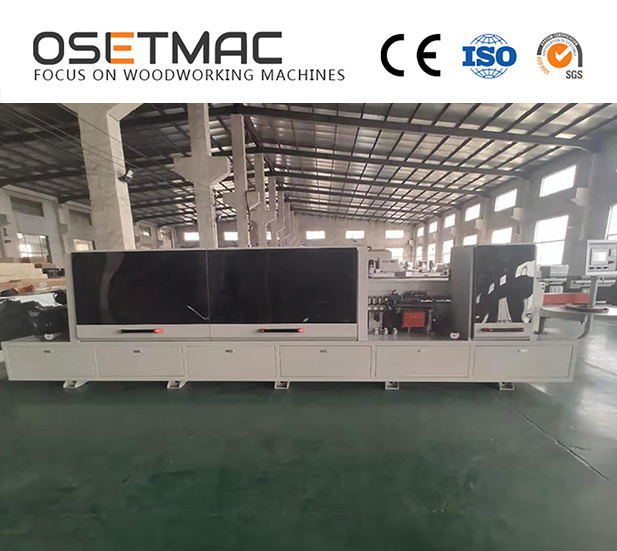

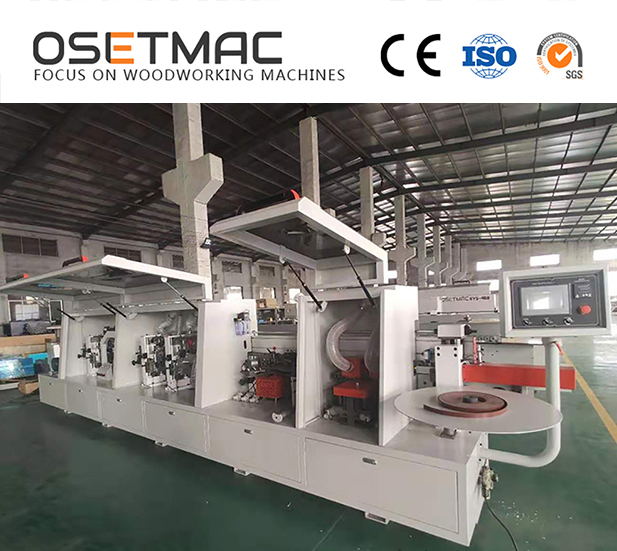

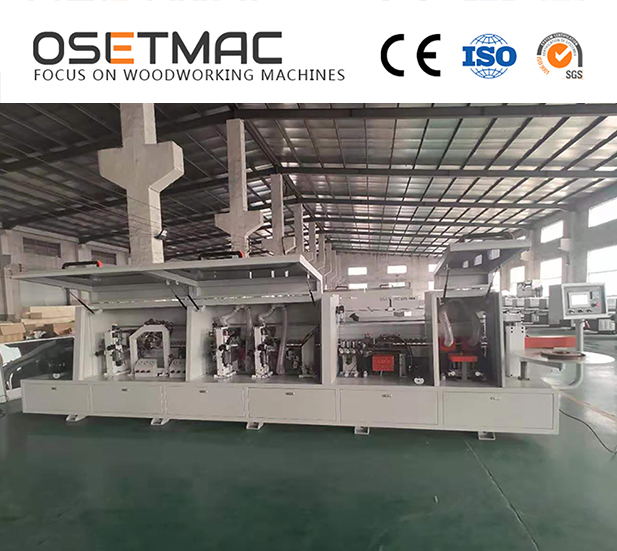

SYS-568
Model

SYS-568

Panel Thickness

10-60mm

Edge Band Thickness

0.3-3mm

Panel Width

≥60mm

Panel Length

≥150mm

Feeding Speed

 15-23m/min

Working Pressure

 0.6Mpa

Voltage

 380V/50HZ/3PH

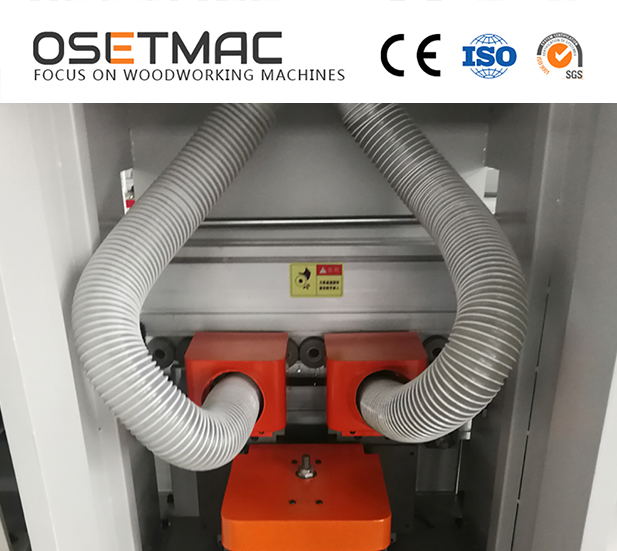

Pre-milling Motor

2.2KW * 2

Gluing Motor

  0.75KW          50HZ    1400RPM

End Cutting Motor

  0.37KW * 2    200HZ  12000RPM

Trimming Motor

 0.75KW * 4    200HZ  12000RPM

Corner Trimming Motor

0.37KW * 2    200HZ  12000RPM

Buffing Motor

0.37KW * 2    50HZ    1400RPM

Conveyor Motor

3.7KW

 Glue Pot Heating Power

2.4KW

Lighting Power

 0.05KW

  Lifting Motor

0.25KW

Total Power

 16.62KW

Dimension

6700*1000*1650mm

Wooden Crate Package

6800*1050*1760mm
