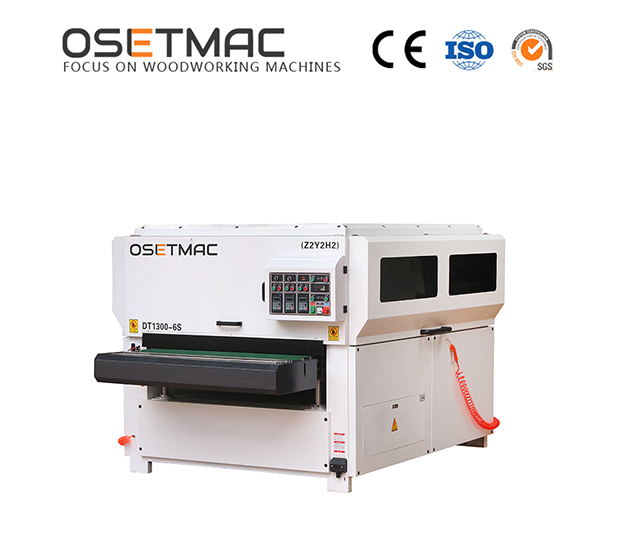

DT1300-6S
Model | DT1300-6S (Z2Y2H2) |
Range Of Working Width | ≤1300mm |
Range Of Working Thickness | 10-160mm |
Range Of Working Length | ≥350mm |
Speed Of Sanding Rollers | Frequency Control |
Speed Of Conveyor | 5-20m/min |
Diameter Of Sanding Rollers | 300mm |
Total Power | 12.06kw |
Straight Roller Motor | 2.2kw * 2 |
Conveyor Motor | 1.1kw |
Lifting Motor | 0.55kw |
Disc Motor | 1.5kw |
Disc Swing Motor | 0.55kw |
Vertical Roller Motor | 1.5kw * 2 |
Vertical Roller Swing Motor | 0.55kw |
Packing Dimension | 3100*2060*1890mm |
Net Weight | 1900KGS |
Using Dimension | 3650*2060*2160mm |
Wooden Case Dimension | 3180*2130*2150mm |
Gross Weight | 2200kg |
