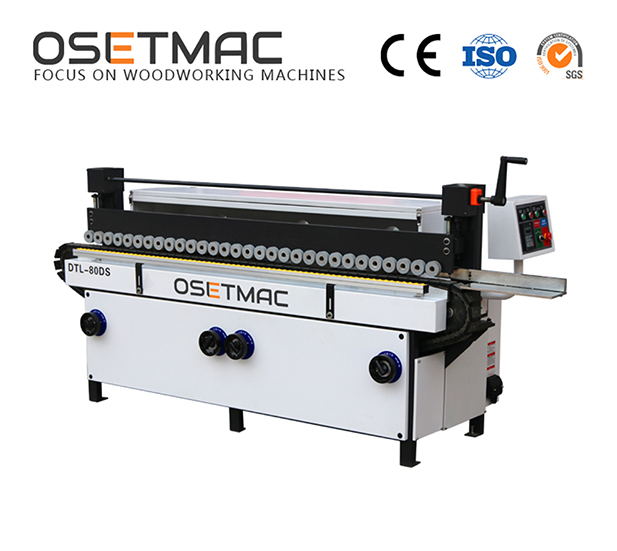

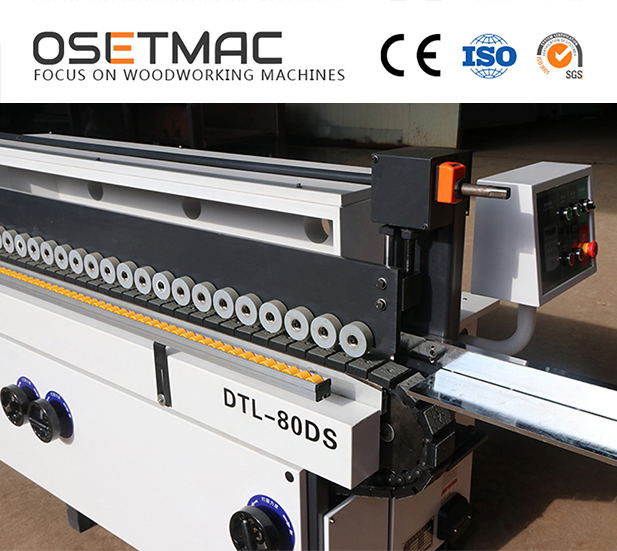

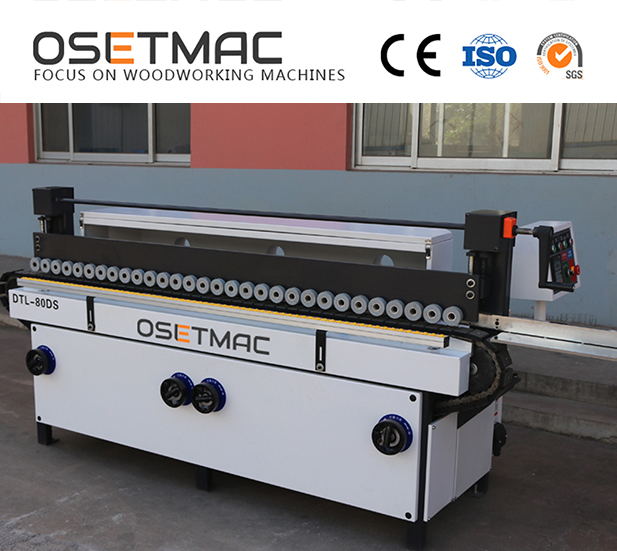

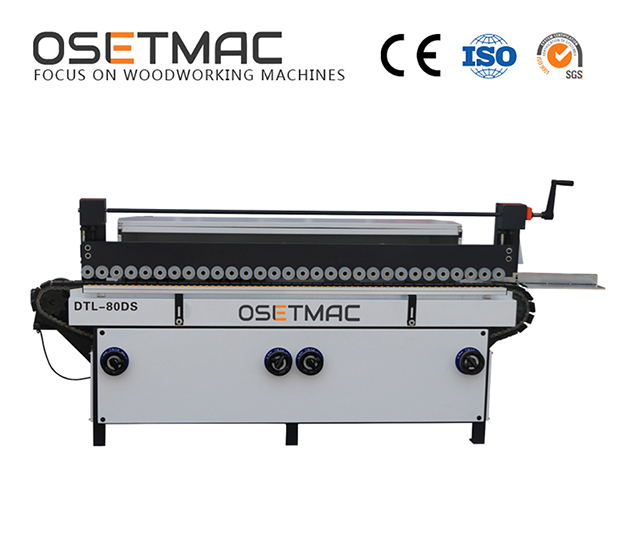

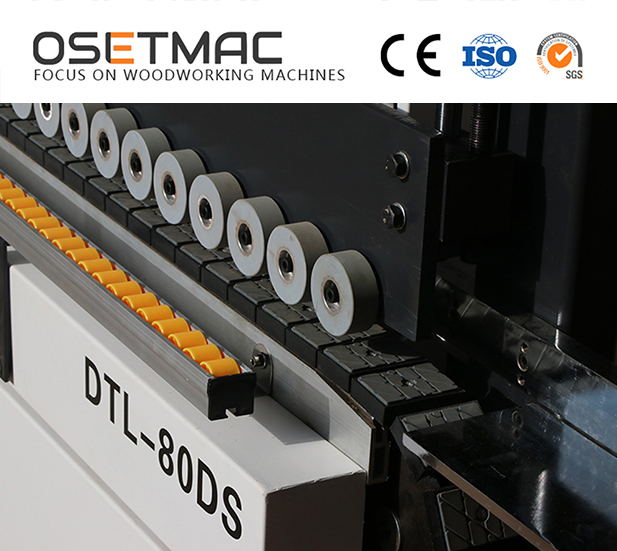

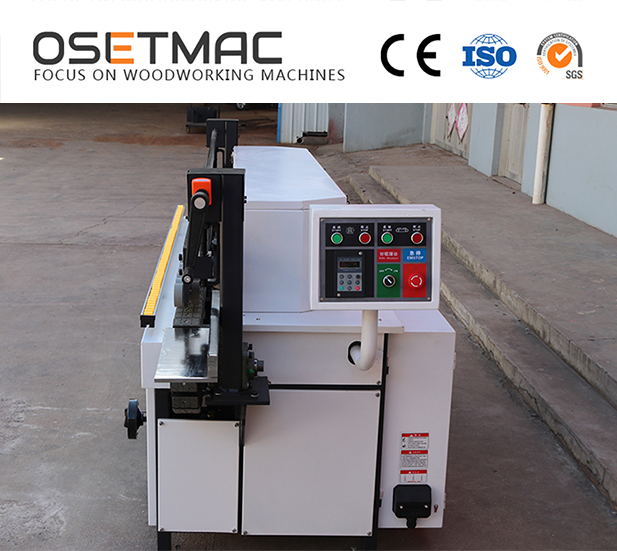

OSETMAC Woodworking Machinery Side Sanding Machine DTL-80DS for Plywood and MDF Board

Model

DTL-80DS

Working Width

≥50mm

Working Thickness

5-40mm

Height of Sanding Roller

150mm

Diameter of Sanding Roller

180mm

Height of Brush Roller

150mm

Diameter of Brush Roller

300mm

Speed of Rollers

Frequency Control

Speed of Conveyor

12m/min

Total Power

5.23kw

Power Supply

380V/50Hz

Main Motor

0.75kw * 4

Conveyor Motor

0.75kw

Channeling Motor

0.37kw * 4

Packing Dimension

2900*1000*1200mm

Net Weight

690kw

Wooden Case Dimension

2950*1100*1330mm

Wooden Case Weight

125kg
