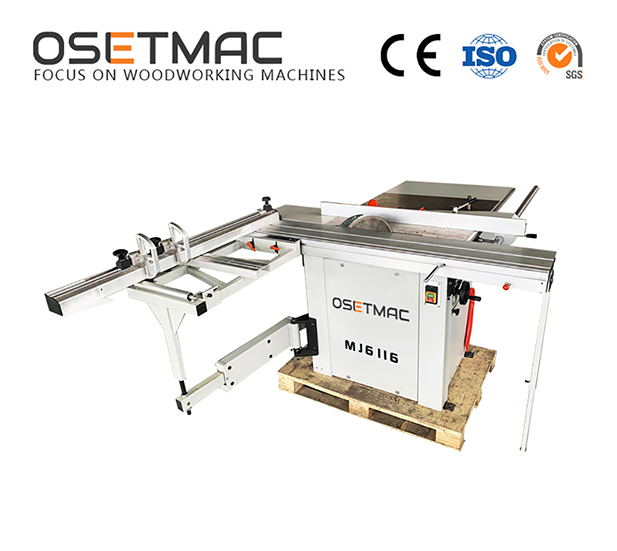

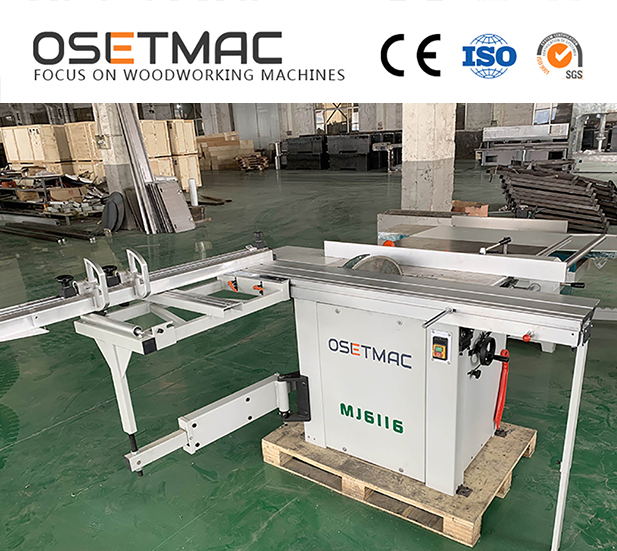

MJ6116
Sliding Table Dimension | 1600*270mm |
Major Table Size | 385*800mm |
Extension Table (Cast Iron) | 440*800mm |
Extension Table (Steel Plate) | 440*800mm |
Rear Extension Table | 310*500mm |
Crosscut Table Size | 680*580mm |
CrossCut Fence | 1200-2200mm |

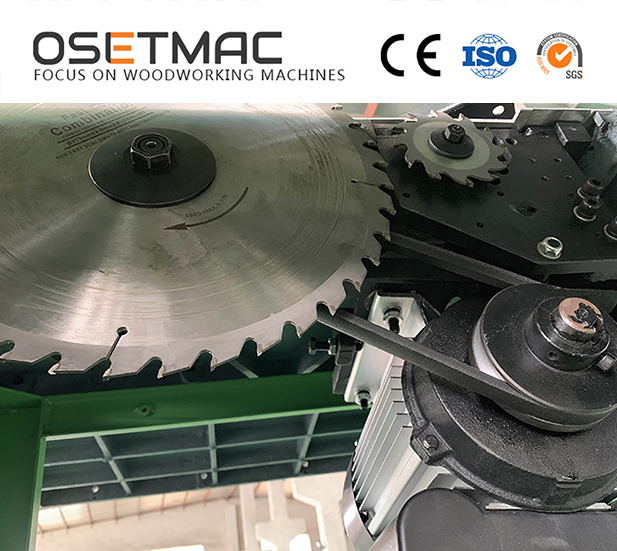

Main Blade Diameter | 315mm |
Main Saw Bore Diameter | 30mm |
Main Saw Blade Speed | 4000RPM |
Scoring Saw Blade Diameter | 90mm |
Scorning Saw Bore Diameter | 20mm |
Scorning Blade Speed | 5800RPM |
Max. Cutting Height With Bade at 90° | 100mm(315) |
Max. Cutting Height With Bade at 45° | 70mm(315) |
Max. Cutting Width | 1220mm |
Max. Cutting Length | 1500mm |
Noise Level | 75dB(A) |
Motor Power | 220V/50HZ/ 1PH/2.2KW |
Dimension of wood packing carton | 940*760*1040mm(Main Crate) |
1660*250*320mm(Sliding Table) | |
Weight (N.W./ G.W.) | 250/290KG |
