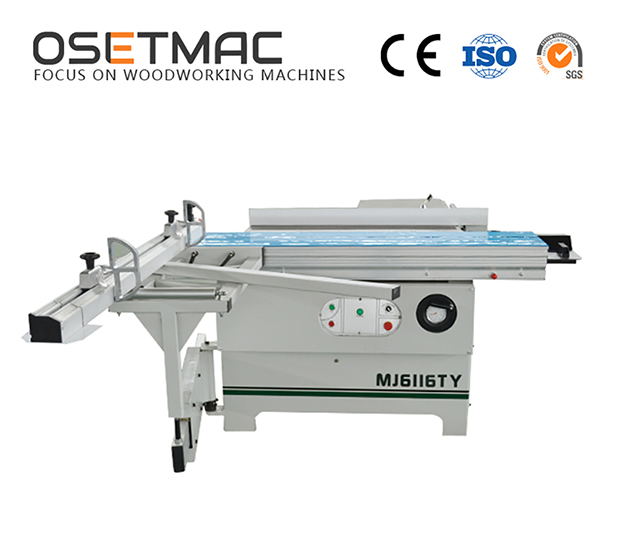

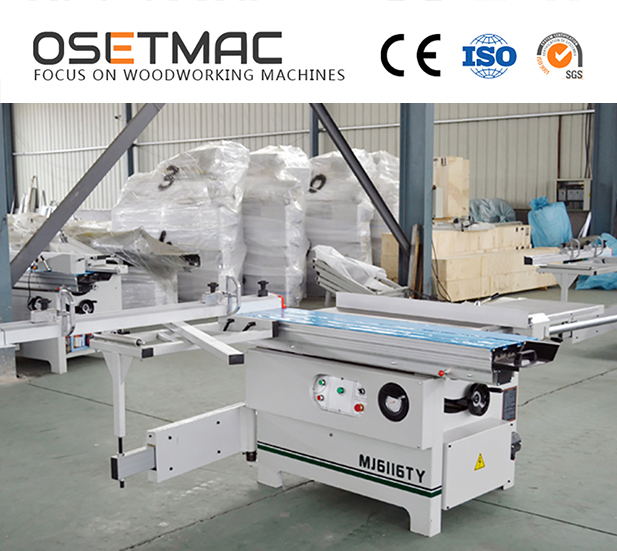

MJ6116TY
Sliding Table Dimension | 1600*375mm |
Main Saw Diameter | 300mm |
Main Saw Blade Diameter Maximum | 315mm |
Main Saw Bore Diameter | 30mm |
Max. Cutting Height With Bade at 90 | 80mm(φ300) |
Max. Cutting Height With Bade at 45 | 50mm(φ300) |
Main Motor Power | 4.0/5.5KW |
Main Blade Speed | 4000/6000RPM |
Scorning Saw Blade Diameter | 120mm |
Scorning Saw Bore Diameter | 20mm |
Scorning Saw Motor Power | 0.75/1.1KW |
Scorning Blade Speed | 8000RPM |
Max. Cutting Width | 1250mm |
Max. Cutting Length | 3100mm |
Blade Tilting Adjustment | 0-45° |
Main Saw Height Adjustment | Manual |
Scorning Saw Height Adjustment | Manual |
Dust Guard Outlet Diameter | 80mm |
Dust System Outlet Diameter | 100mm |
Dimension | 1650*3150*900mm |
N.W. | 550KG |
