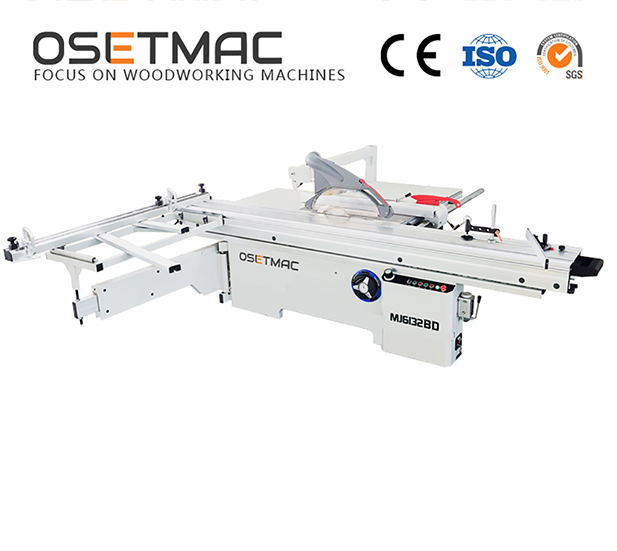

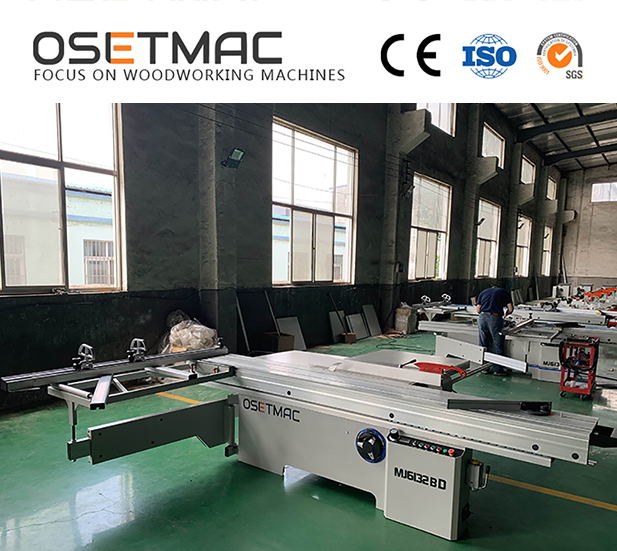

OSETMAC Woodworking Machinery Sliding Table Panel Saw MJ6132BD for Wood Cutting

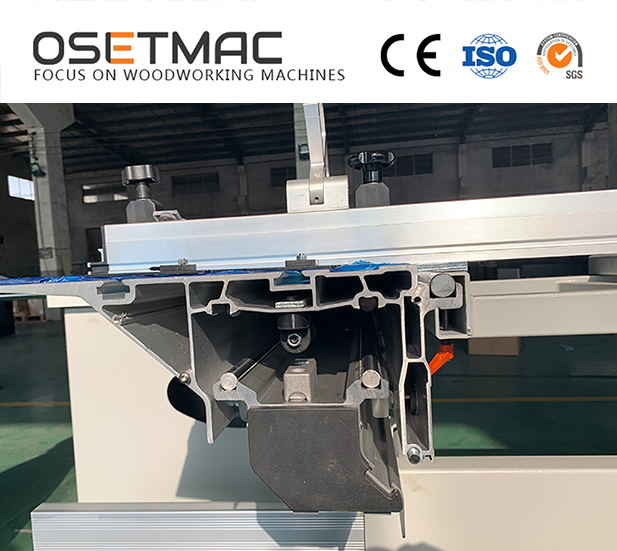

Sliding Table Dimension

3200*380mm

Cast Iron Table Dimension

910*620*80mm

length extension table

905*680*70mm

width cutting extension table

640*680*70mm

 Main Saw Diameter

300mm

Main Saw Blade Diameter Maximum

350mm

Main Saw Bore Diameter

30mm

Max. Cutting Height With Bade at 90

80/100mm(φ300/350)

Max. Cutting Height With Bade at 45

50/70mm(φ300/350)

Main Motor Power

5.5KW

Main Blade Speed

4000/6000RPM

Scorning Saw Blade Diameter

120mm

Scorning Saw Bore Diameter

20mm

Scorning Saw Motor Power

1.1KW

Scorning Blade Speed

8000RPM

Max. Cutting Width

1250mm

Max. Cutting Length

3100mm

Blade Tilting Adjustment

0-45°

Main Saw Height Adjustment

Electric

Scorning Saw Height Adjustment

Manual

Dust Guard Outlet Diameter

80mm

Dust System Outlet Diameter

100mm

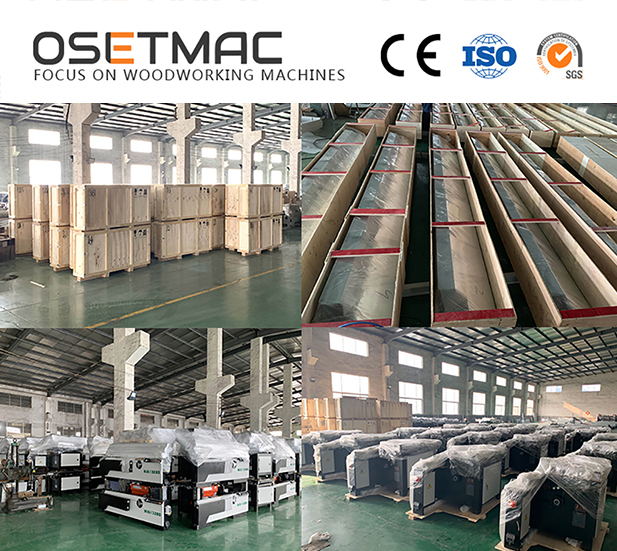

Wood Packing Dimension
Main Crate and Sliding table

2250*1200*1100mm
3400*450*290mm

Dimension

3250*3450*900mm

Weight

800KG
